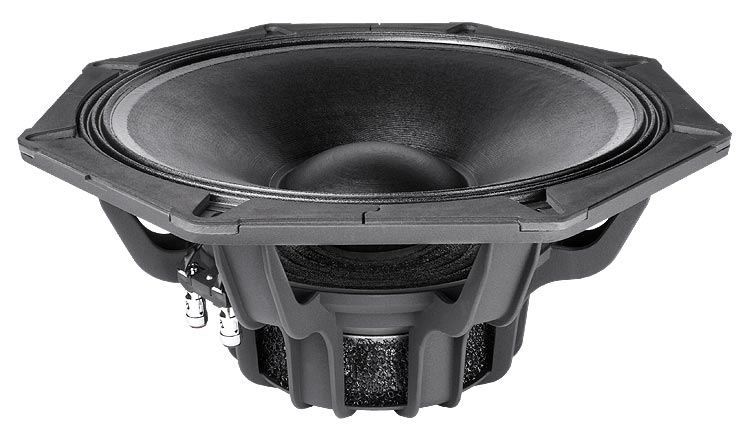

Faital PRO 15FX560 15” - Woofers zijn p.st. |
|
| Nominal Basket Diameter | 15" / 380mm |
| Impedance | 8 ohms |
| RMS | 700 RMS |
| Watts | 1,400 Watts |
| Frequency Response | 40Hz - 4kHz |
| Sensitivity (1W/1m) | 99dB SPL |
| Voice Coil Diameter | 3" / 77mm |
| Voice Coil Length | 23.5 mm |
| Air Gap Height | 14 mm |
| X Damage | 21.8 mm |
| BL Factor | 21.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 16.5"/15.3 / 418.3mm/388mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter-Front Mount | 14.01" / 356mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 7.27" / 184.6mm |
| Flange & gasket Thickness | 0.45" / 11.5mm |
| Net Weight | 16.7 lb. / 7.6 kg. |
| Shipping Weight | 19.8 lb. / 9.0 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 38 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .64 mH |
| Mechanical Q (Qms) | 6.8 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .3 |
| Comp. Equivelant Vol. (Vas) | 5.05 ft3 / 143 Liters |
| Voice Coil Overhang (Xmax) | 9.42 mm |
| Surface Area of Cone (Sd)m2 | 0.0813m2 |
| Reference Efficiency | 2.47% |
| Diaphragm Mass (Mms) | 115 Grams |
| Mechanical Compliance (Cms) | .15 mm/N |
| Mechanical Resistance (Rms) | 4.06 Kg/s |
|
Frequency Response |
|
|
|
|
|
Impedance Curve |
|
 |
|
| Mounting Dimensions | |
|
|
|
