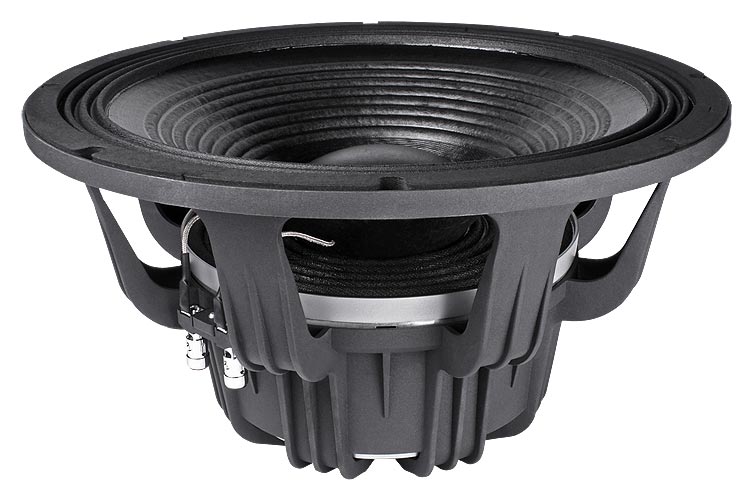

Faital PRO 15XL1400 15” - Woofers zijn p.st. |
|
| Nominal Basket Diameter | 15" / 380mm |
| Impedance | 8 ohms |
| RMS | 1,400 RMS |
| Watts | 2,800 Watts |
| Frequency Response | 40Hz -2.5kHz |
| Sensitivity (1W/1m) | 97dB SPL |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Length | 31 mm |
| Air Gap Height | 15.5 mm |
| X Damage | 28 mm |
| BL Factor | 26.7 N/A |
|
Mounting Information |
|
| Overall Diameter | 15.47" / 393mm |
| Bolt Circle Diameter | 14.72" / 374mm |
| Baffle Cutout Diameter-Front Mount | 13.85" / 351.8mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 8.46" / 215mm |
| Flange & gasket Thickness | 0.54" / 13.7mm |
| Net Weight | 24.7 lb. / 11.2 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 38 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 1.6 mH |
| Mechanical Q (Qms) | 10.4 |
| Electrical Factor (Qes) | .34 |
| Total Q (Qts) | .33 |
| Comp. Equivelant Vol. (Vas) | 2.81 ft3 / 79.7 Liters |
| Voice Coil Overhang (Xmax) | 12.92 mm |
| Surface Area of Cone (Sd)m2 | 0.0780m2 |
| Reference Efficiency | 1.24% |
| Diaphragm Mass (Mms) | 190 Grams |
| Mechanical Compliance (Cms) | .1 mm/N |
| Mechanical Resistance (Rms) | 4.36 Kg/s |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
