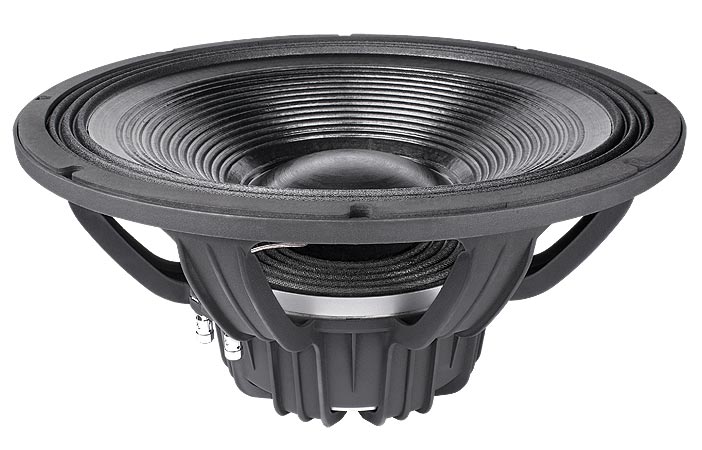

Faital PRO 18XL1600 18” - Woofers zijn p.st. |
|
| Nominal Basket Diameter | 18" / 460mm |
| Impedance | 8 ohms |
| RMS | 1,600 RMS |
| Watts | 3,200 Watts |
| Frequency Response | 30Hz - 1.5kHz |
| Sensitivity (1W/1m) | 98dB SPL |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Length | 31.3 mm |
| Air Gap Height | 15.5 mm |
| X Damage | 28 mm |
| BL Factor | 26.7 N/A |
|
Mounting Information |
|
| Overall Diameter | 18.11" / 460mm |
| Bolt Circle Diameter | 17.32" / 440mm |
| Baffle Cutout Diameter-Front Mount | 16.61" / 422mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 9.09" / 231mm |
| Flange & gasket Thickness | 0.55" / 14mm |
| Net Weight | 26.9 lb. / 12.2 kg. |
| Shipping Weight | 30.2 lb. / 13.7 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper Pulp (Weather Proof) |
| Surround | Treated Cloth |
| Former Material | Glass Fiber |
| Voice Coil | Copper |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 32 Hz |
| Impedance (Re) | 5.4 ohms |
| Coil Inductance (Le) | 1.45 mH |
| Mechanical Q (Qms) | 9.3 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .36 |
| Comp. Equivelant Vol. (Vas) | 6.52 ft3 / 184.7 Liters |
| Voice Coil Overhang (Xmax) | 13.0 mm |
| Surface Area of Cone (Sd)m2 | 0.1124m2 |
| Reference Efficiency | 1.76% |
| Diaphragm Mass (Mms) | 240 Grams |
| Mechanical Compliance (Cms) | .1 mm/N |
| Mechanical Resistance (Rms) | 5.2 Kg/s |
| EBP | 86 |
|
Frequency Response |
|
|
|
|
| Free Air Impedance Curve | |
 |
|
|
Mounting Dimensions |
|
|
|
|
