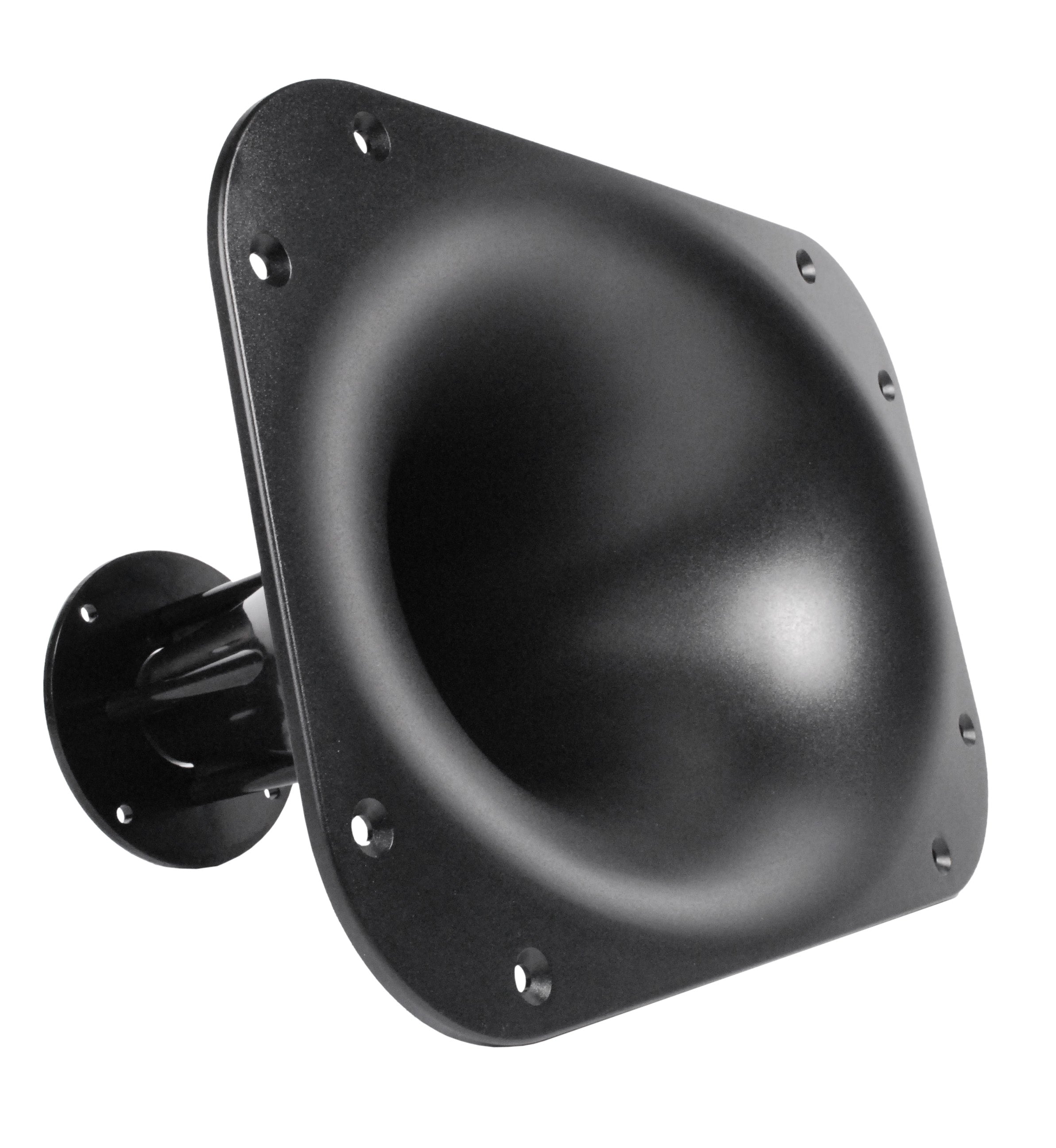

FaitalPRO LTH142 1,4” - Horns zijn p.st.
|
|
|
Type
|
Long Elliptical Tractrix
|
|
Throat Size
|
1.4" / 35.6mm
|
|
Frequency Response
|
500Hz - 18kHz
|
|
Recommended Crossover Freq.
|
800Hz
|
|
Dispersion
|
60°H x 50° V
|
|
Construction
|
PC/ABS
|
|
Net Weight
|
1.96 lbs. / .89kg
|
|
Shipping Weight
|
3.17 lbs. / 1.44kg
|
|
Mounting Information
|
|
|
Overall Width
|
13.8" / 350mm
|
|
Overall Height
|
9.5" / 240mm
|
|
Overall Depth
|
6.76" / 171.6mm
|
|
Cutout Width
|
12.6" / 320mm
|
|
Cutout Height
|
8.66" / 220mm
|
|
Mounting Type
|
Bolt On
|
|
High Frequency Mounting Hole Diameter
|
|
|
4 Holes Equally Spaced On Diameter
|
4" / 101.6 mm
|
|
Horizontal Polar Pattern
 |
|
|
Vertical Polar Pattern
 |
|
|
Horizontal Beamwidth
 |
|
|
Vertical Beamwidth
 |
|
|
Directivity Index
 |
|
|
Beamwidth
 |
|
|
Dimensions
 |
|
