Klik hier voor de SD 400.2 EVOX2 (hogere kwaliteit mosfets, grotere power supply section, tiffany rca, efficiënter en robuuster in alle aspecten vergleken met de EVO 5 componenten)
Klik hier voor de handleiding - Download hier de 1kHz test tone
-

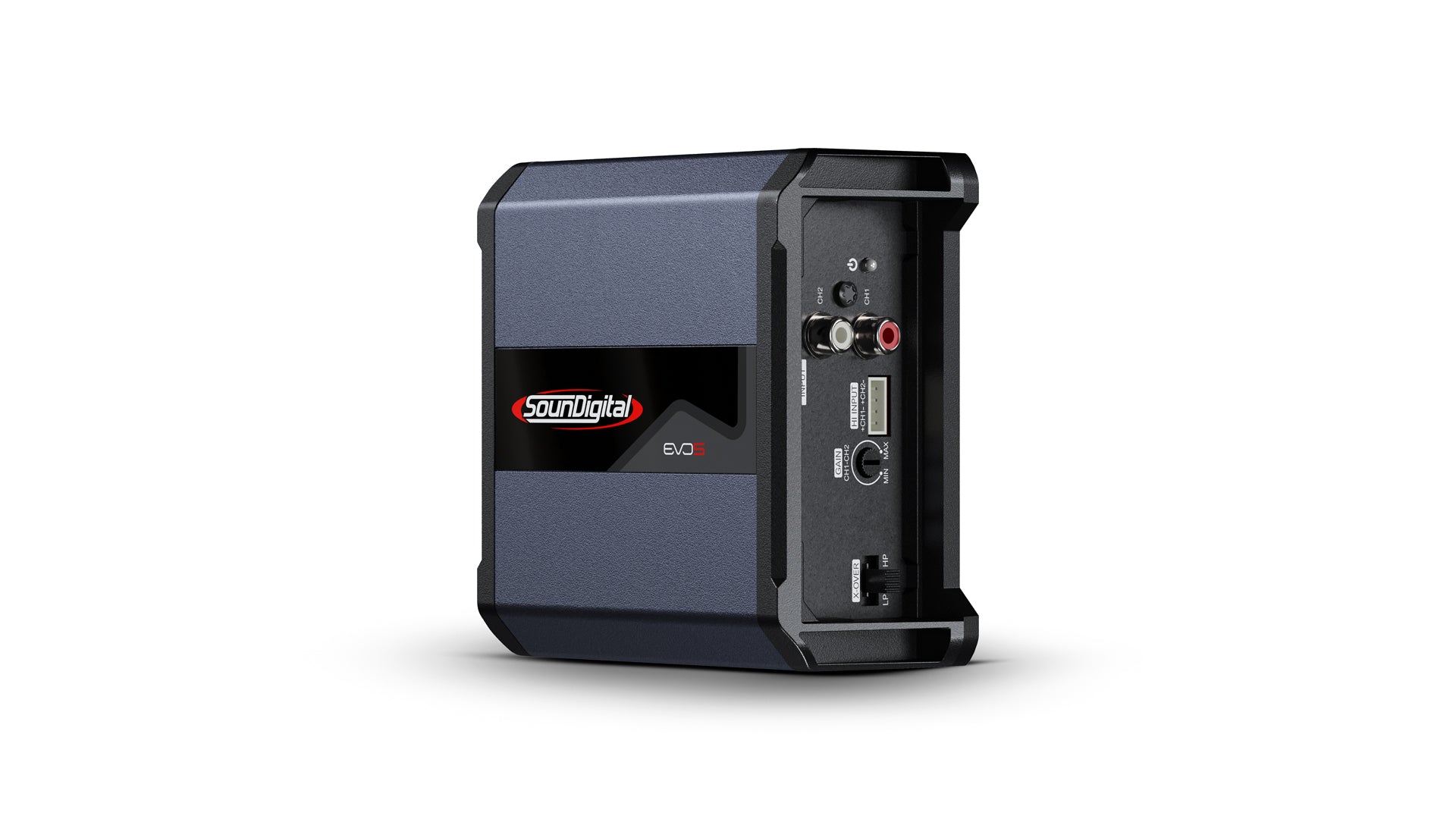

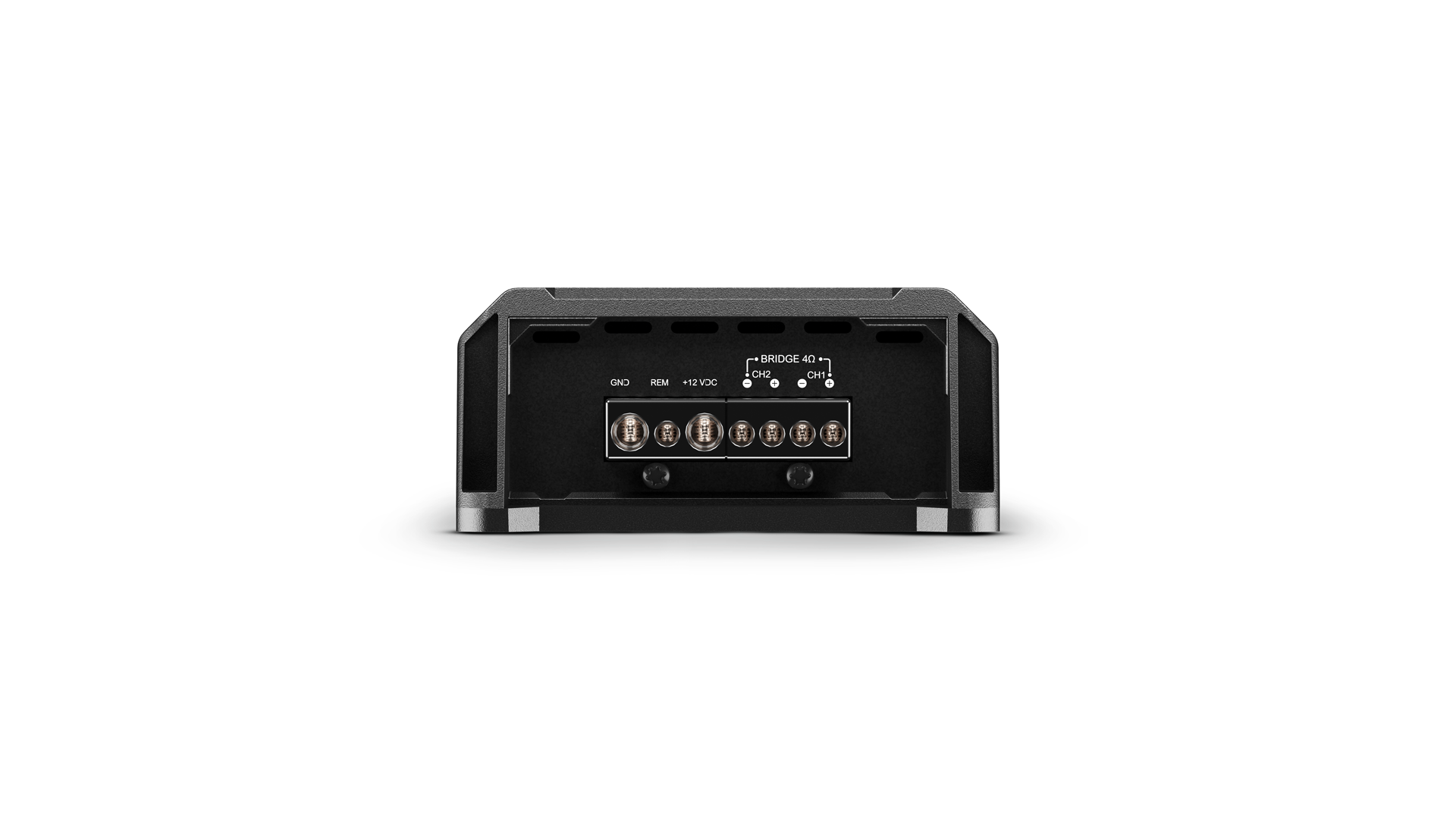

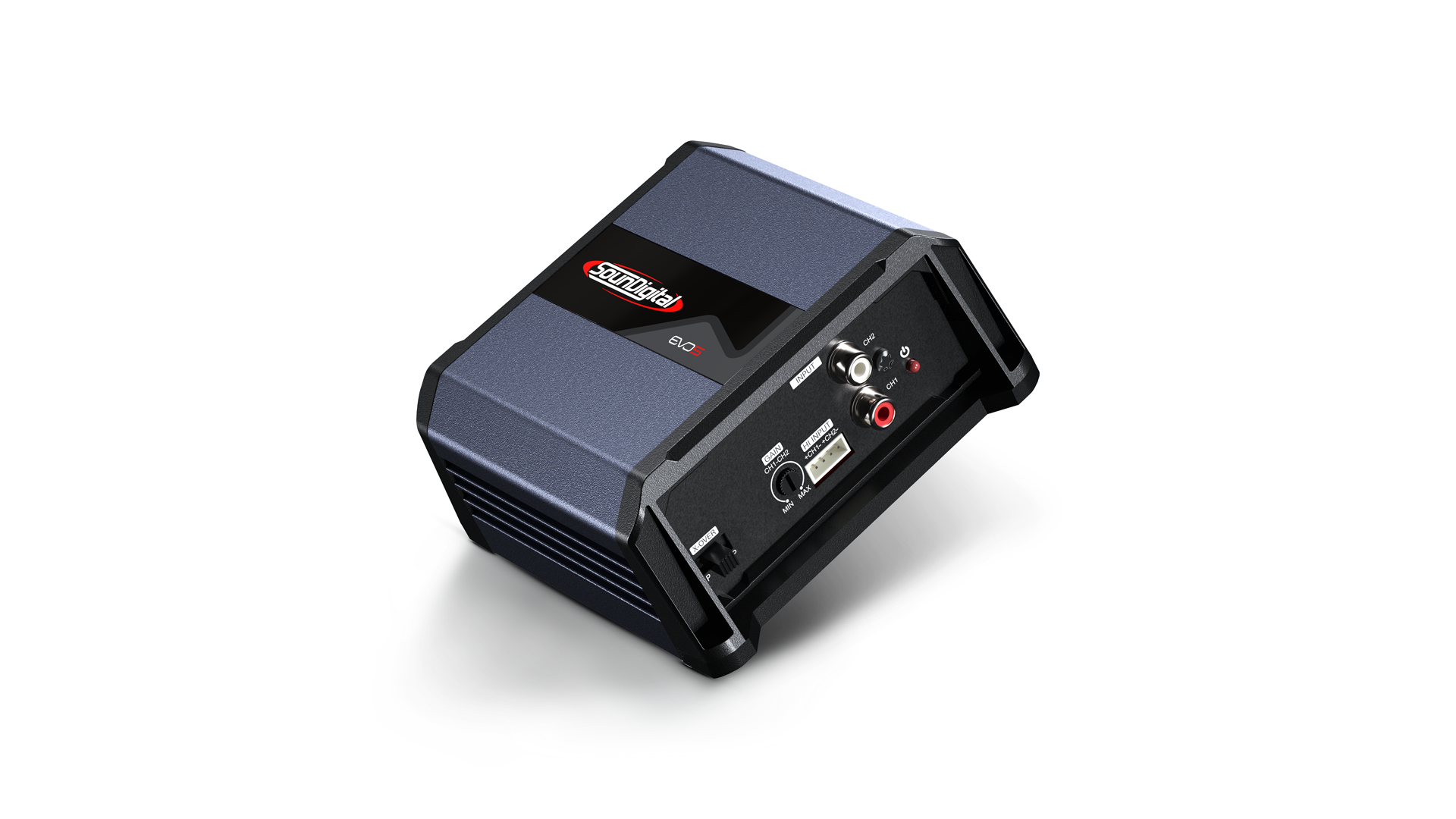

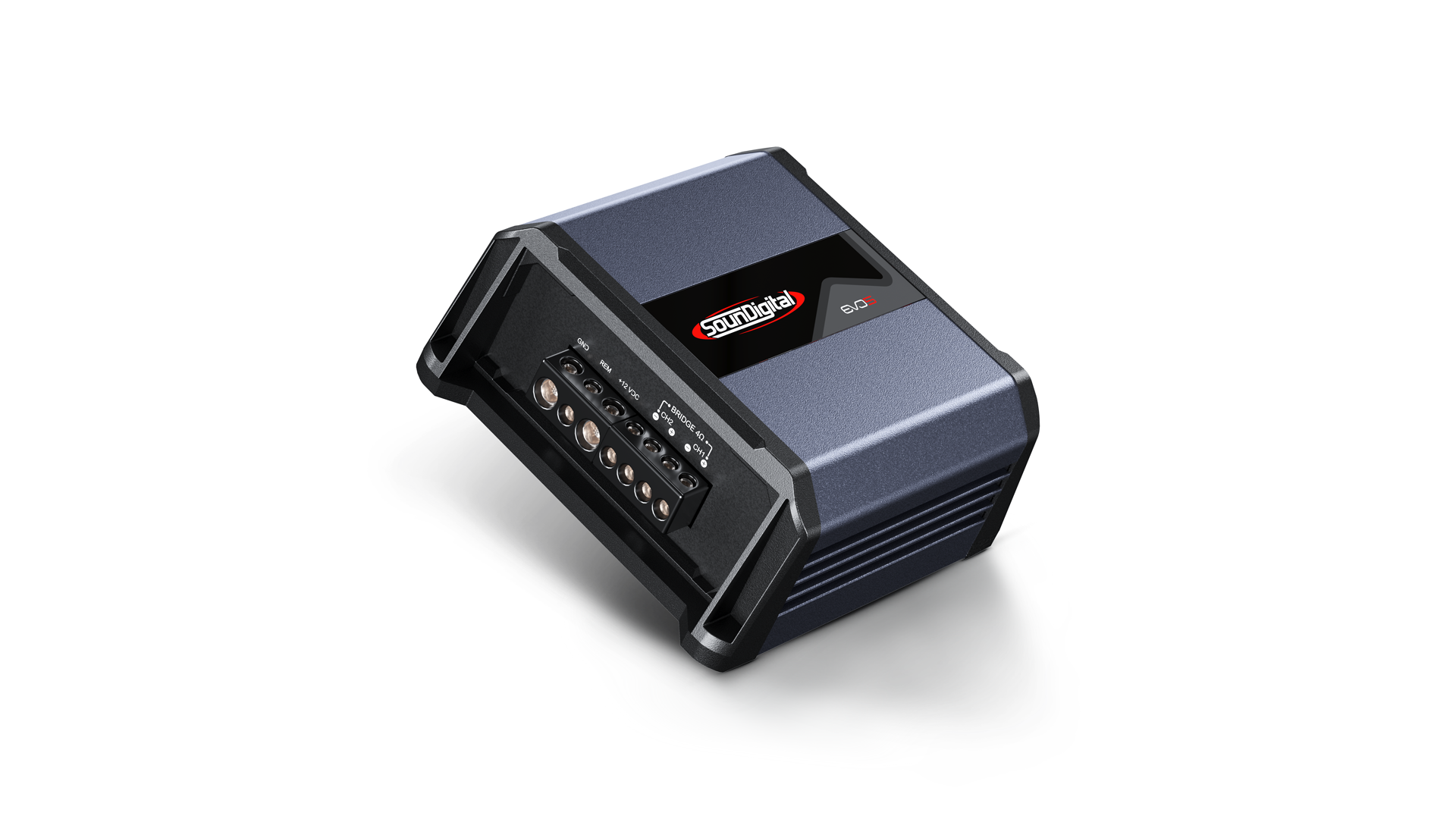

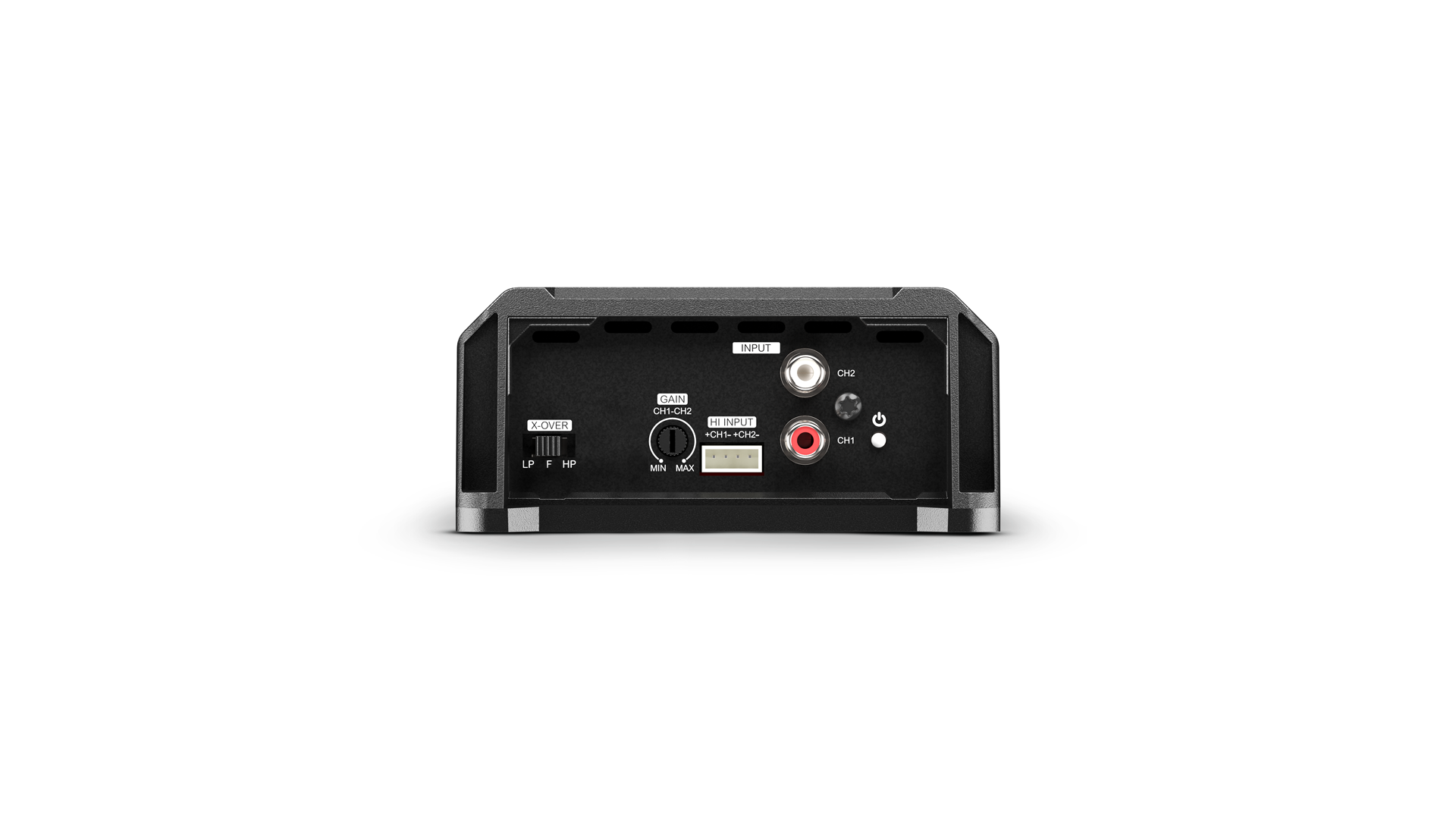

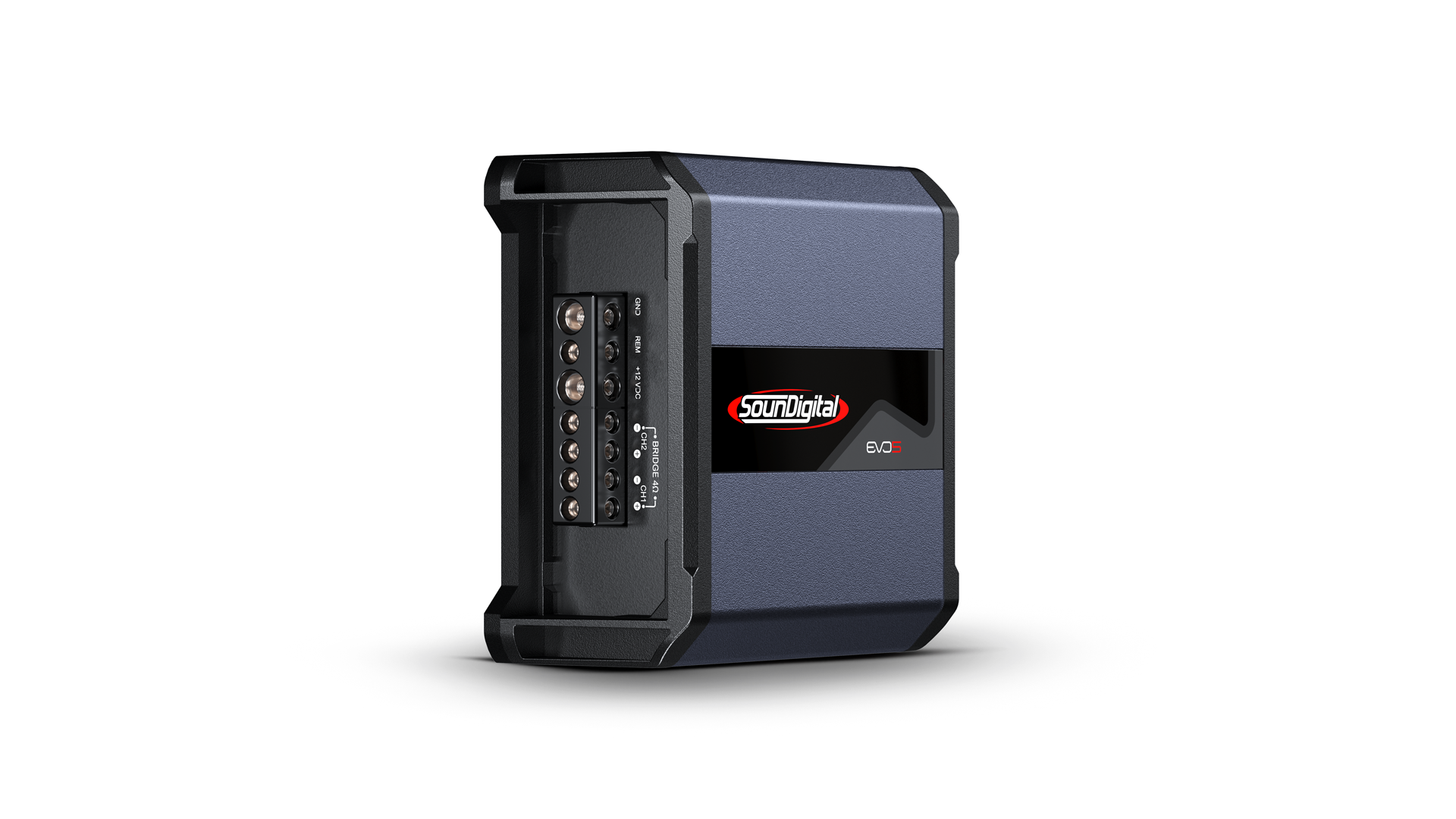

SD 400.2 EVO 5 - 4Ω
Power @ 1Ω: N/A
Power @ 2Ω: 2 x 200WRMS
Power @ 4Ω: 2 x 132WRMS
Bridge Power @ 4Ω: 1 x 400WRMS
Bridge Power @ 8Ω: 1 X 264WRMS -
Frequency Response (-3dB): 10Hz ~ 20kHz
-
Low Pass Filter: 80Hz
-
High Pass Filter: 80Hz
-
Operating Voltage: 8V ~ 16V
-
SNR: 90dB
-
Input Sensitivity: 0.2V ~4V
-
Current Draw (Music): 18A
-
Current Draw With Resistive Load: 36A
-
Total Efficiency: 88%
-
Damping Factor: 200
-
Stereo Channel Minimum Impedance:
2Ω
-
Bridge Minimum Impedance: 4Ω
-
Recommended Fuse (Music): 20A
-
Recommended Battery (Minimum): 35Ah
-
Width: 4.4 in / 11.3 cm
-
Length: 4.7 in / 12.1 cm
-
Height: 2 in / 5.1 cm
-
Weight: 0.48kg
