Klik hier voor de SD 5000.1 EVOX2 (hogere kwaliteit mosfets, grotere power supply section, tiffany rca, efficiënter en robuuster in alle aspecten vergleken met de EVO 5 componenten)
Klik hier voor de handleiding - Download hier de 1kHz test tone
-

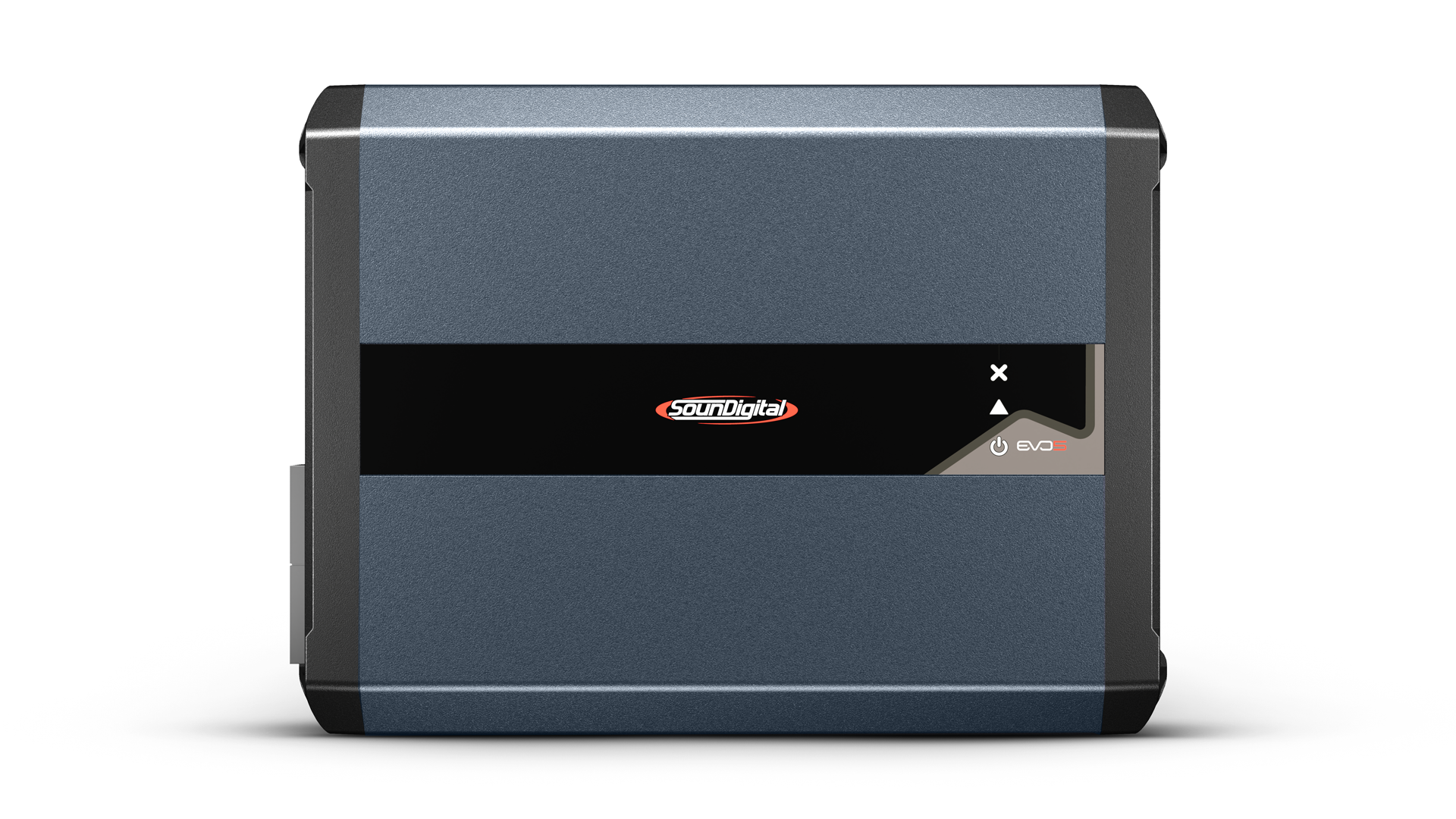

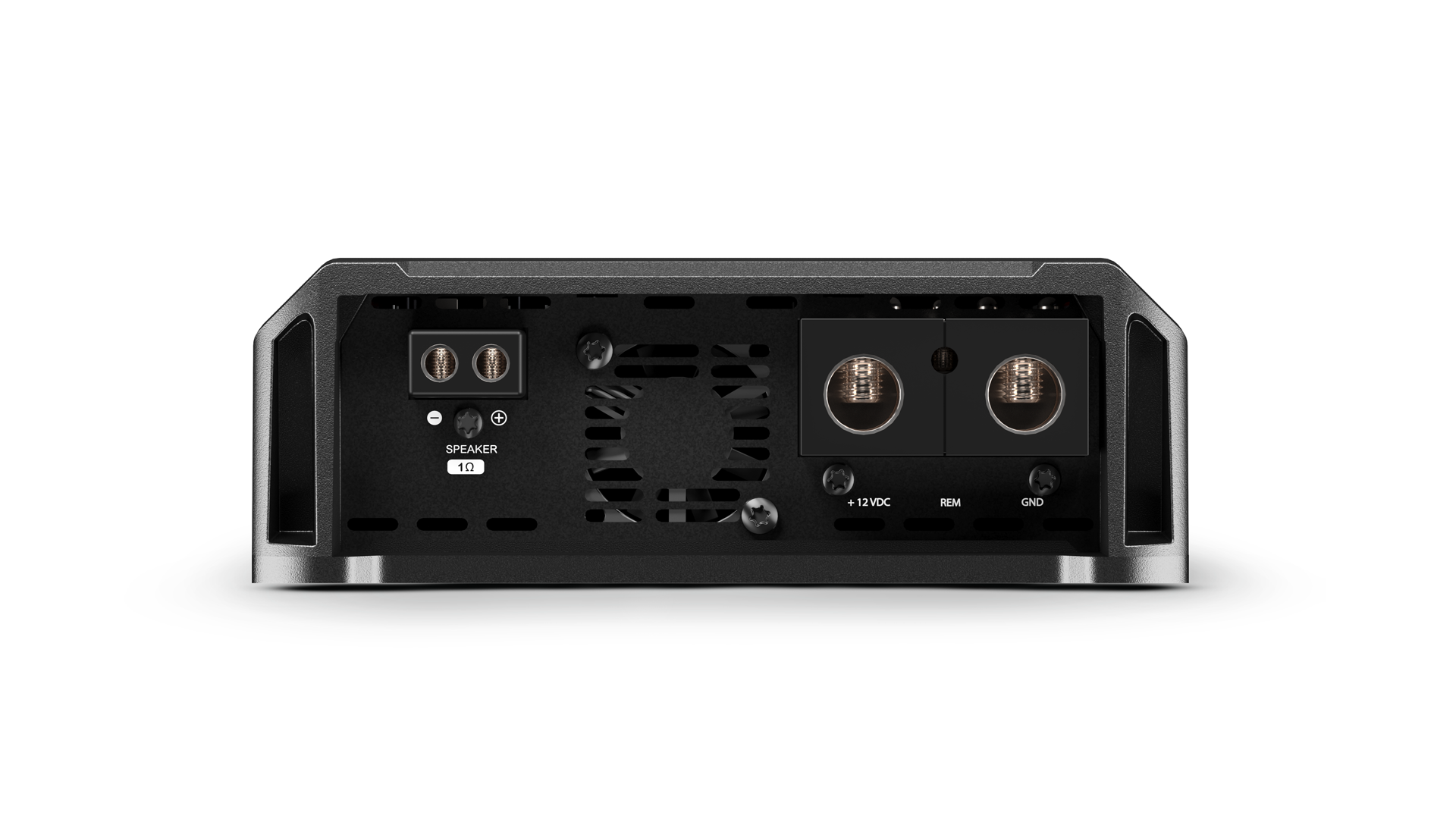

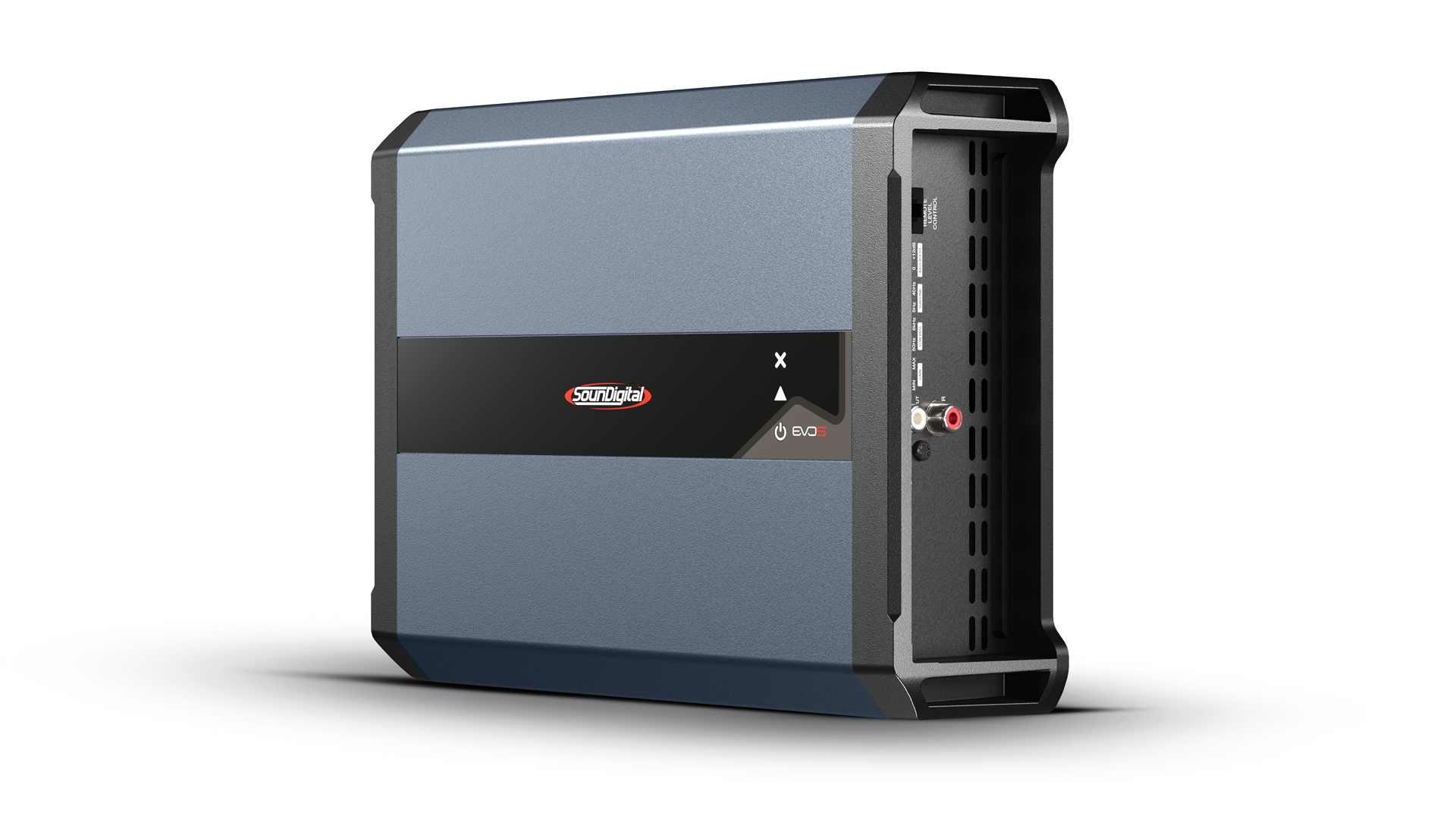

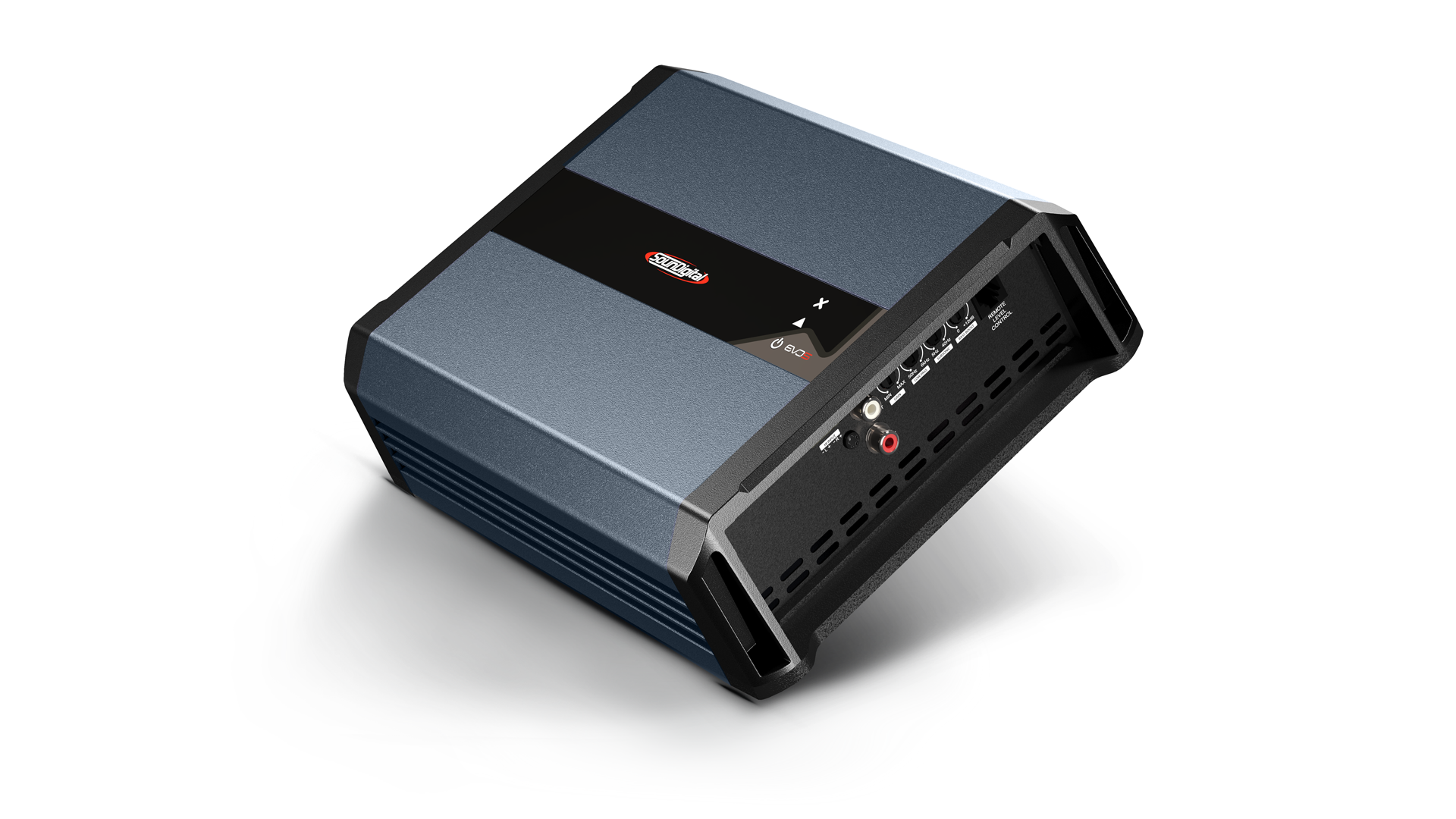

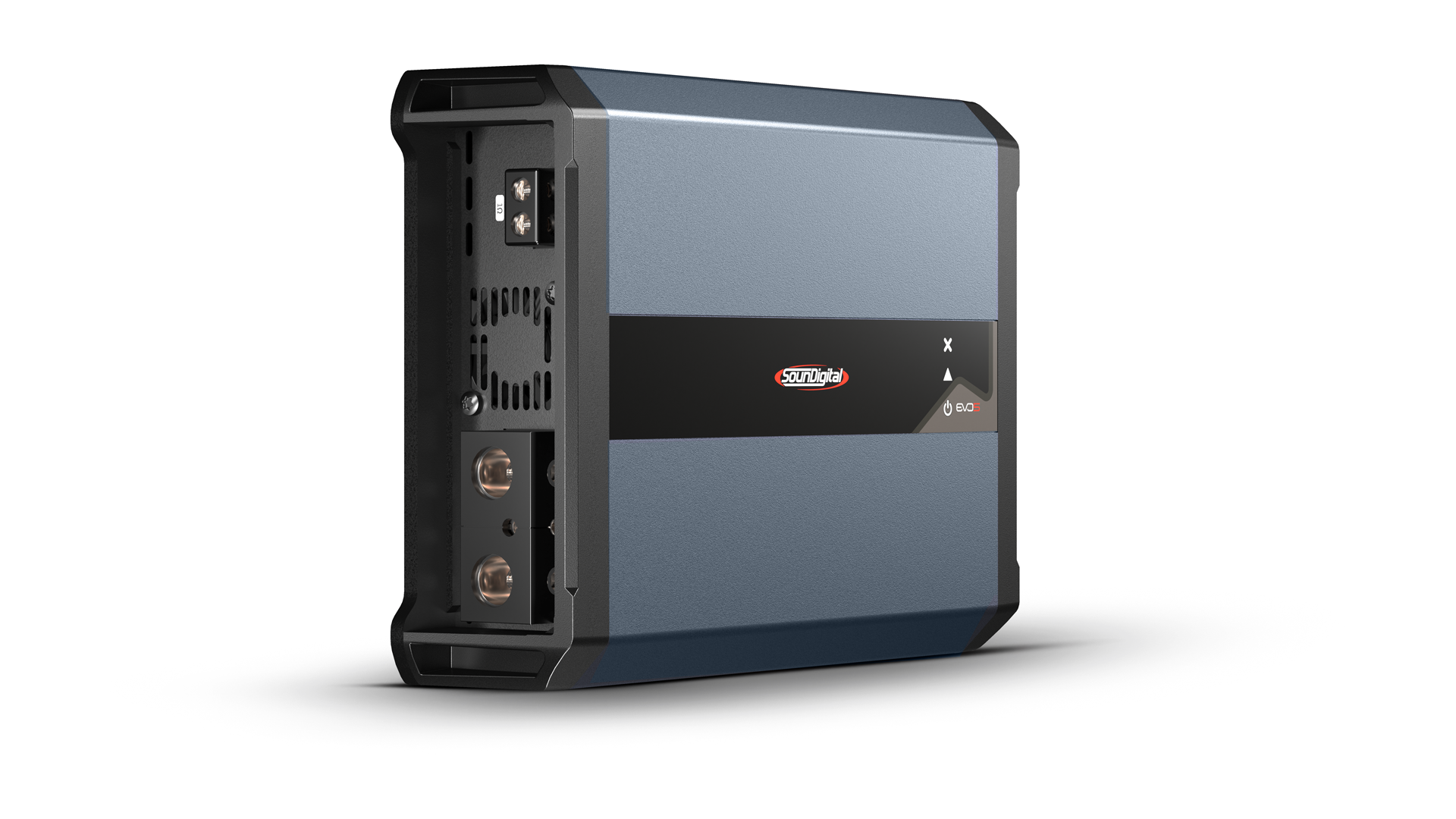

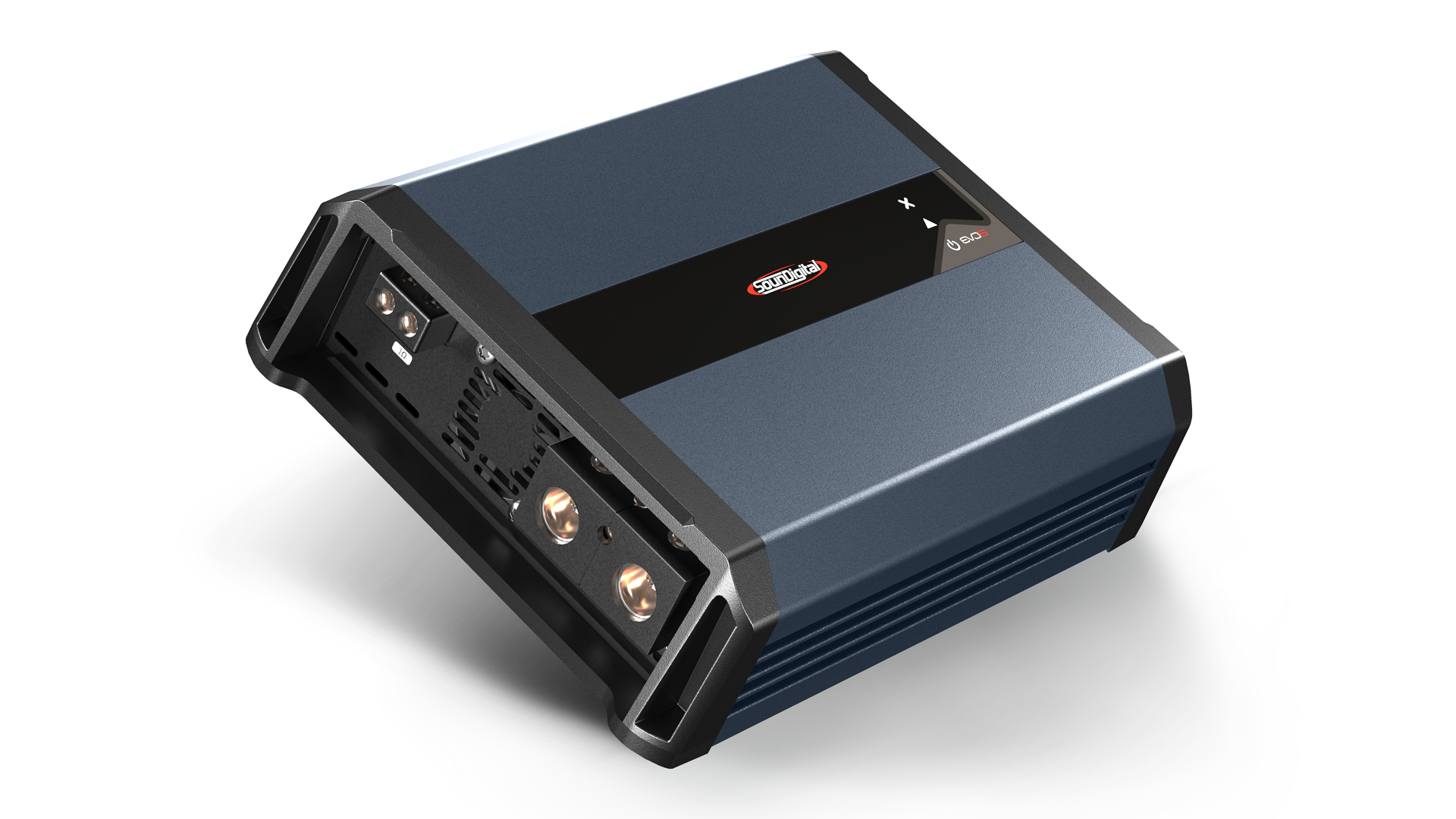

SD 5000.1 EVO 5 - 1Ω
Power @ 1Ω: 1 X 5000 WRMS
Power @ 2Ω: 1 X 3300 WRMS
Power @ 4Ω: 1 X 2178 WRMS -
SD 5000.1 EVO 5 - 2Ω
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 5000 WRMS
Power @ 4Ω: 1 X 3300 WRMS -
Response frequency (-3dB): 5Hz ~ 6kHz
-
Low pass filter (12dB/octave): 50Hz ~ 6kHz
-
Subsonic filter (12dB/octave) 5Hz ~ 80Hz
-
Supply Voltage: 8V ~ 16V
-
Signal-to-noise ratio: 90dB
-
Input sensitivity (RCA): 0.2V ~ 2V
-
Input sensitivity (high input): 1.2V ~ 12V
-
music consumption: 230A
-
Maximum consumption: 461A
-
Total efficiency: 86%
-
Damping factor (@100Hz nominal impedance): >2000
-
Power cable: 50mm² (0 AWG)
-
Audio output cable:
1Ω: 2 x 10mm² (7 AWG)
2Ω: 2 x 6mm² (9 AWG) -
Recommended fuse (musical): 250A
-
Recommended battery (minimum for music use): 250Ah
-
Width: 18 cm
-
Length: 25 cm
-
Height: 6.32 cm
-
Weight: 2.75 kg
