Klik hier voor de SD 800.4 EVOX2 (hogere kwaliteit mosfets, grotere power supply section, tiffany rca, efficiënter en robuuster in alle aspecten vergleken met de EVO 6 componenten)
Klik hier voor de handleiding - Download hier de 1kHz test tone
-

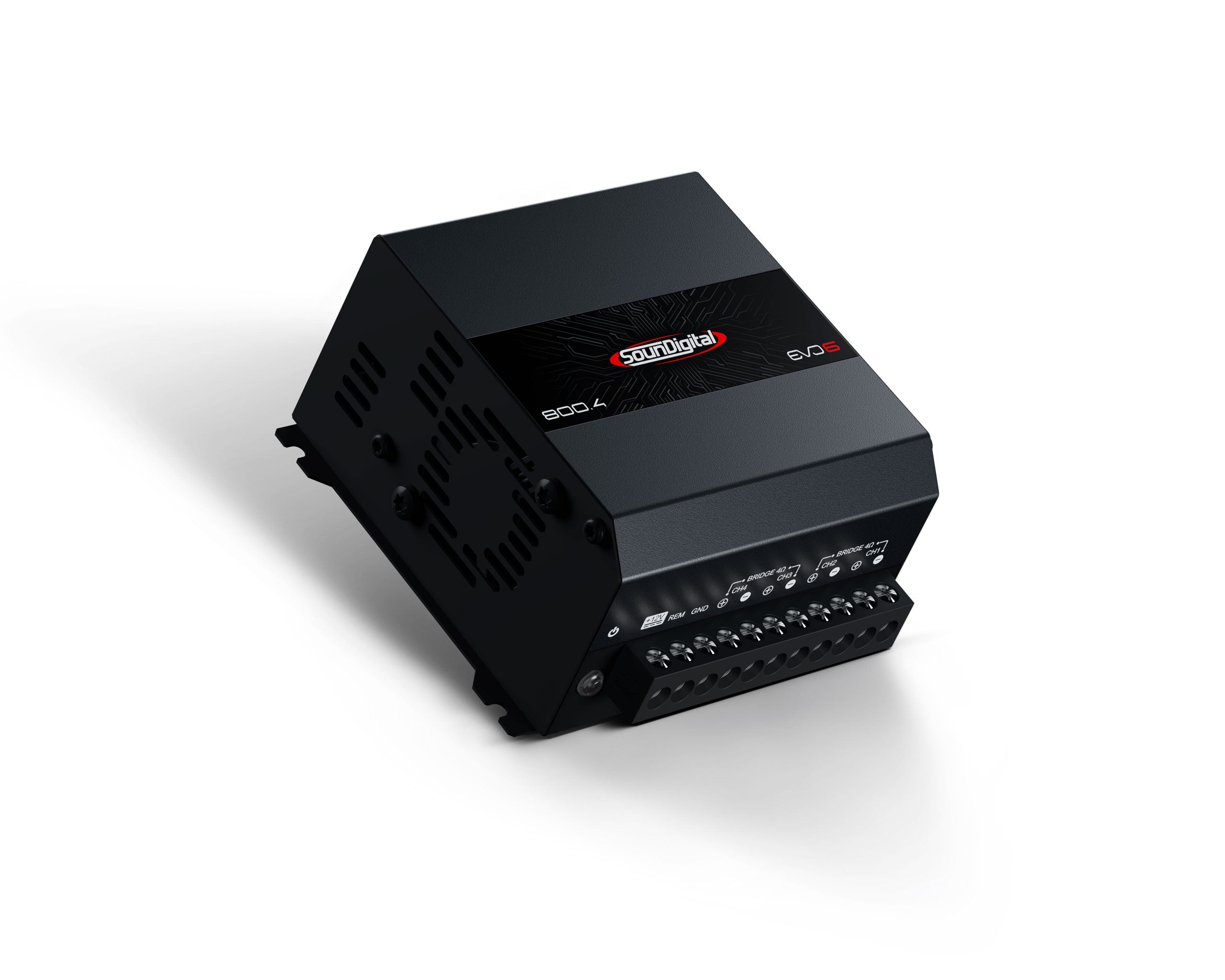

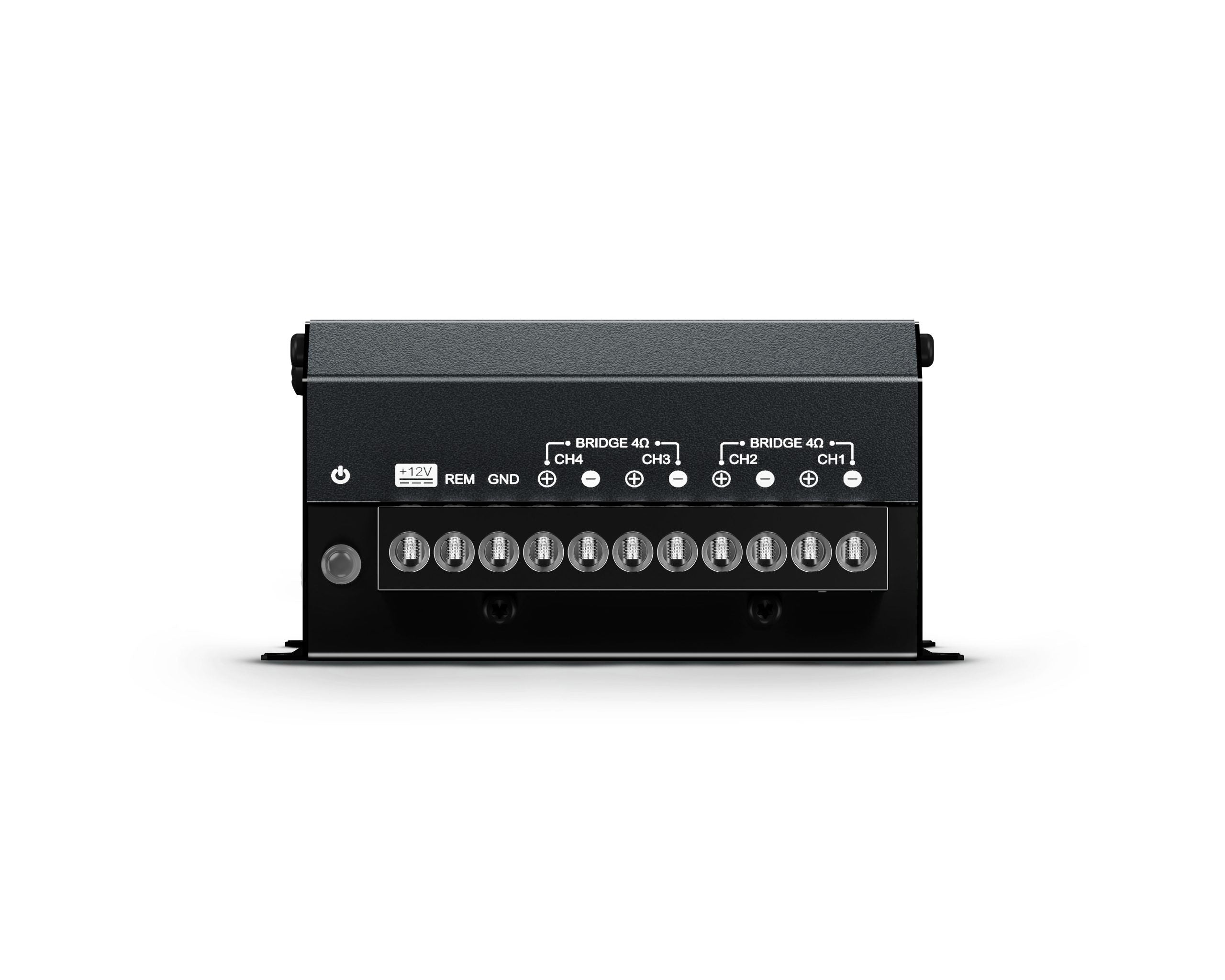

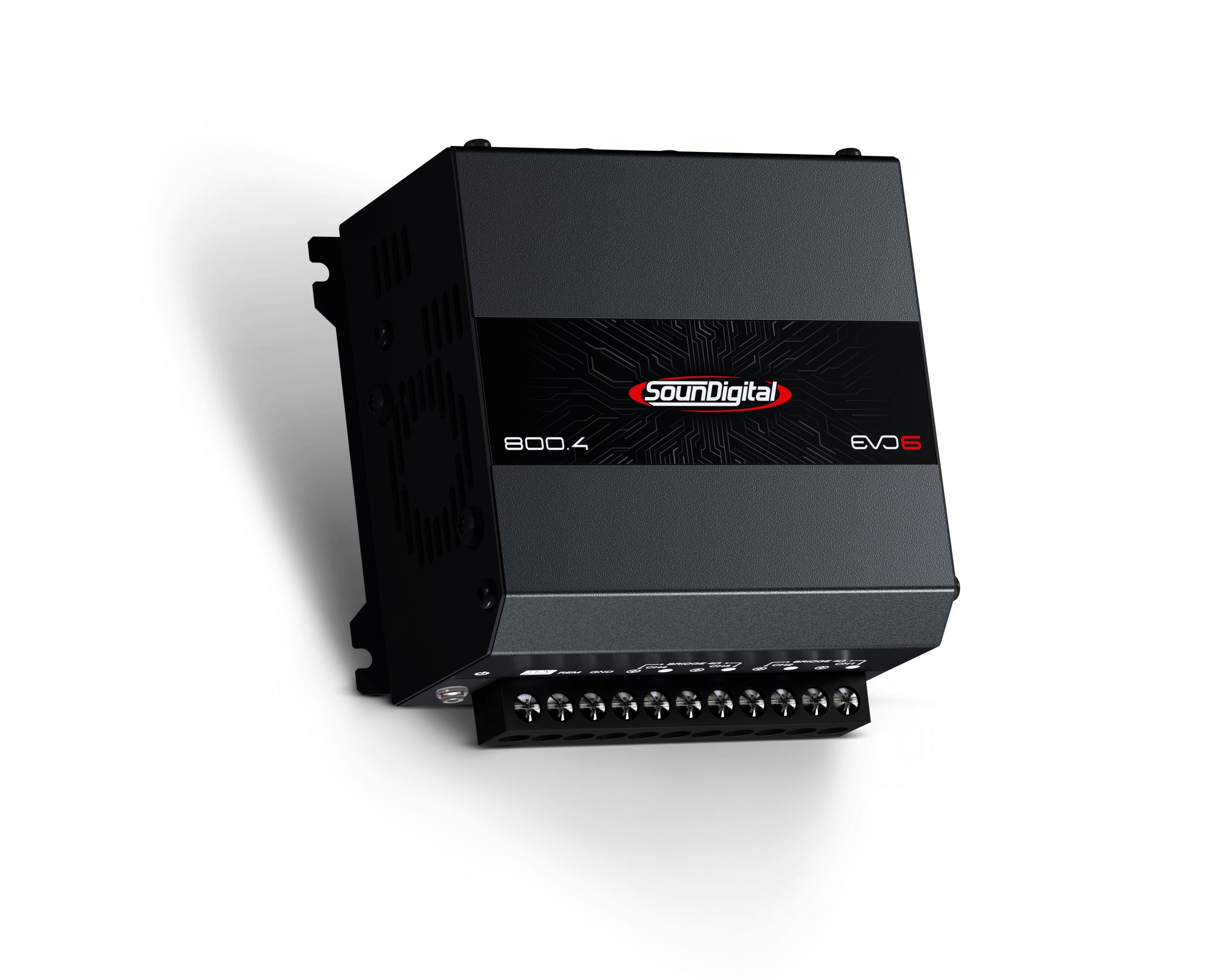

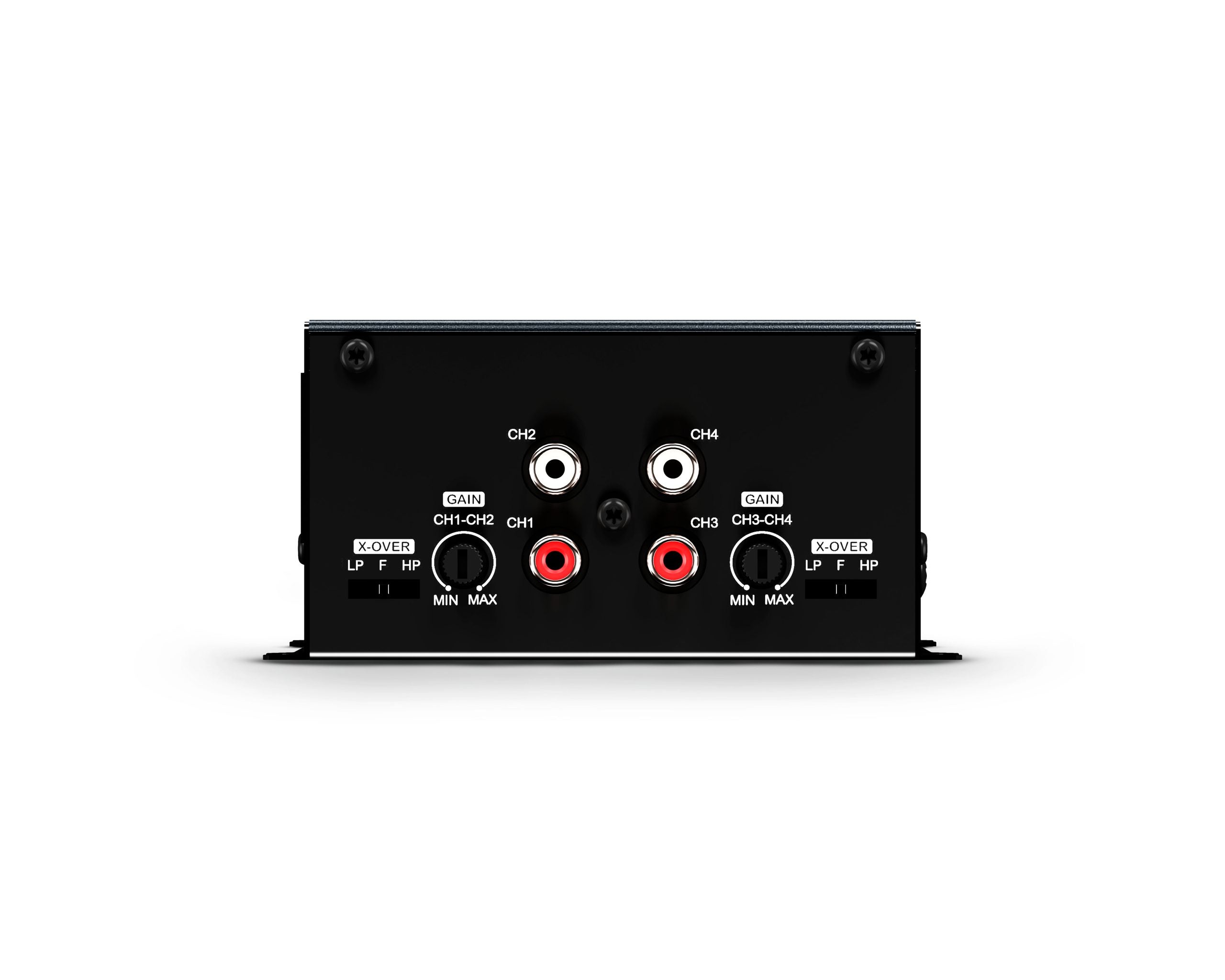

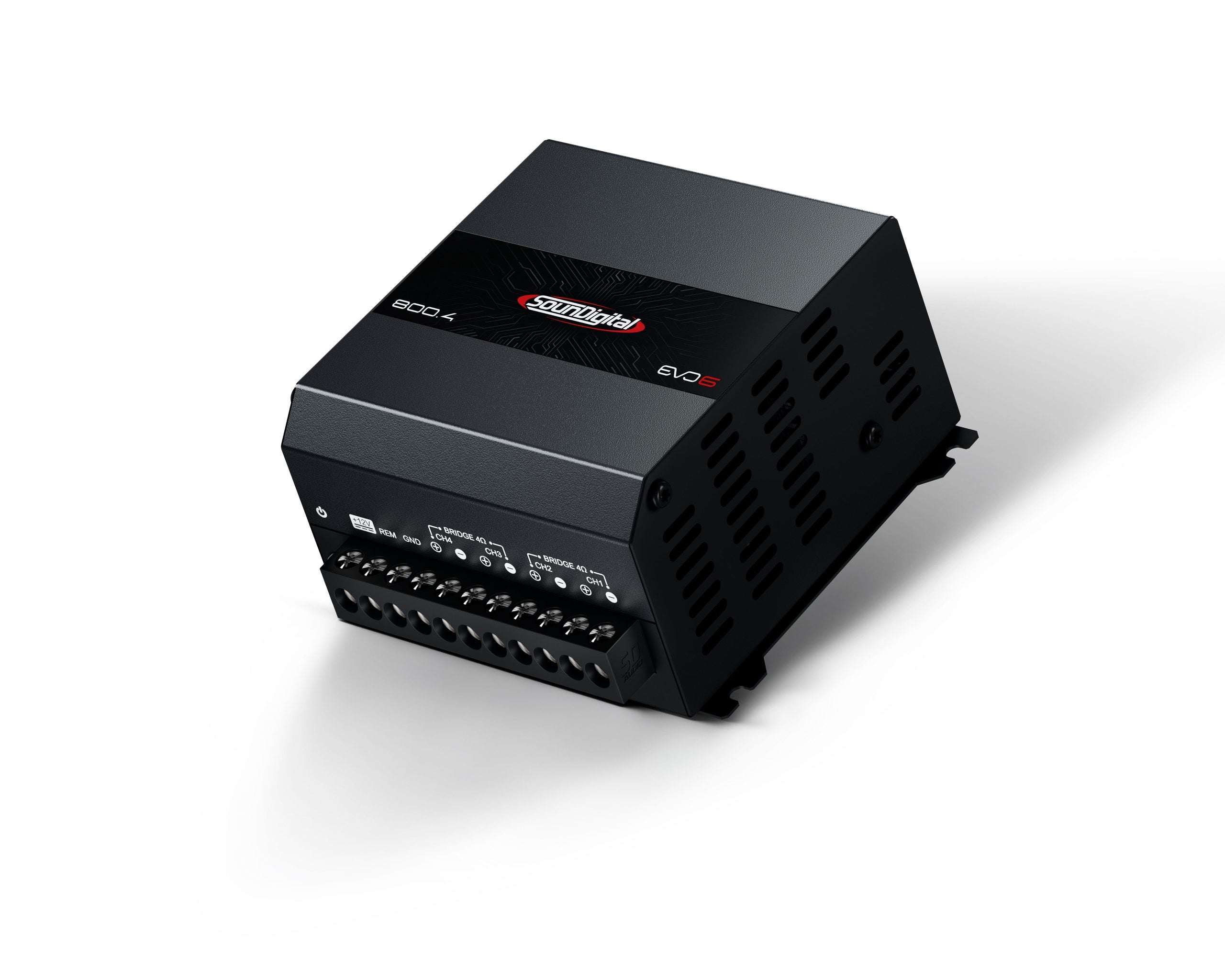

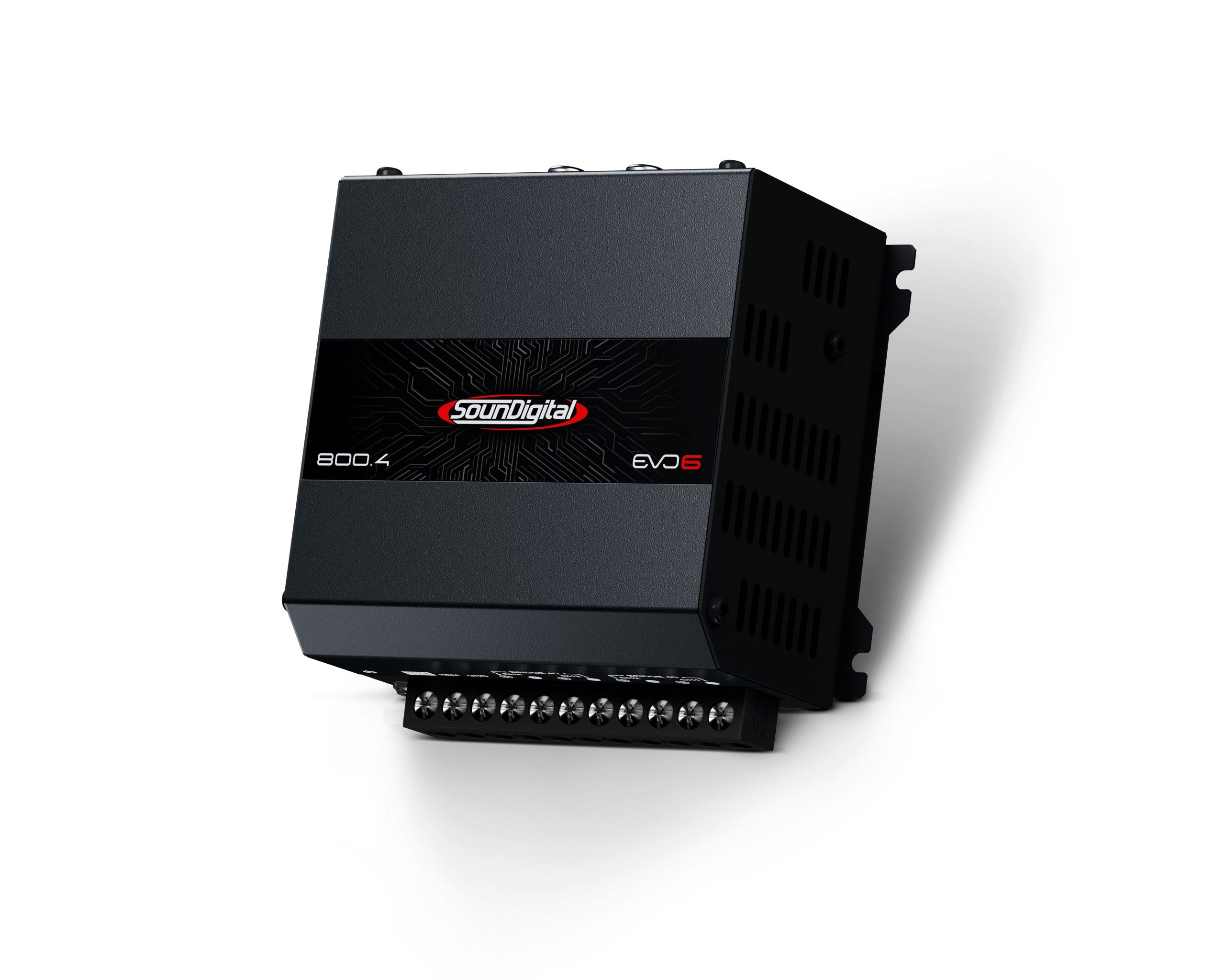

SD 800.4 EVO6 - 4Ω
Power @ 4Ω: 4 x 132W RMS
Power @ 2Ω: 4 x 200W RMS
Bridge Power @ 4Ω: 2 x 400W RMS
Bridge Power @ 2Ω: N/A -
Frequency response (-3dB): 5Hz~20kHz
-
Low Pass Filter (12dB/octave): 80Hz
-
High Pass Filter (12dB/octave): 80Hz
-
Supply voltage: 9V~16V
-
Signal-to-noise ratio: 93dB
-
Input Sensitivity (RCA): 0.2V ~ 2V
-
Music consumption: 39A
-
Consumption with resistive load: 78.7A
-
Total efficiency: 80%
-
Damping factor (@100Hz nominal impedance): 200
-
Power cable: 10mm² (7 AWG)
-
Speaker cable: 2 x 2.5mm² (13 AWG)
-
Recommended fuse* (musical use): 40A
-
Recommended battery (minimum): 60Ah
-
Width: 11.2 cm
-
Length: 10.7 cm
-
Height: 5.2 cm
-
Weight: 0.609 kg
