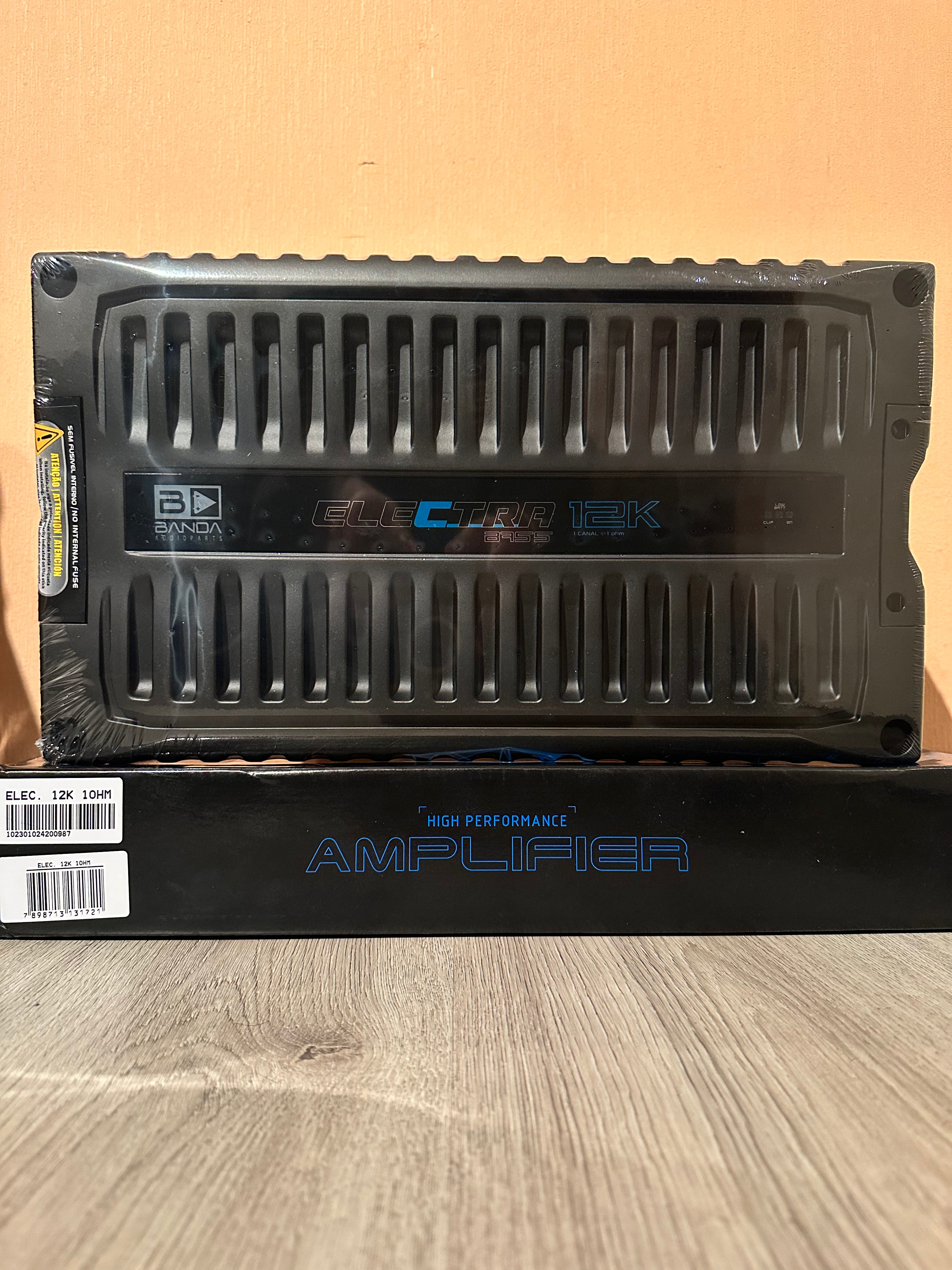

Banda Electra Bass 12K - 0.5Ω |
|
|
Total Power 14,4 @ 0.5 Ohm |
14200 WRMS |
|
Total Power 14,4 @ 1 Ohms |
10300 WRMS |
|
Total Power 12,6 @ 0.5 Ohm |
12600 WRMS |
|
Total Power 12,6 @ 1 Ohms |
9200 WRMS |
|
Efficiency @ 1 Ohms |
82% |
|
Efficiency @ 0.5 Ohm |
73% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<1% |
|
Input Sensitivity |
180mV – 2,5V |
|
SNR |
85dB |
|
Frequency Response (Key OFF) |
- |
|
Frequency Response |
20Hz to 600Hz (-3dBs) |
|
Bass Bosst @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsonic) |
20Hz to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80Hz to 600Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
600 A |
|
Current at Rest |
4,0 A |
|
Average Current Draw (Sinusoidal) |
1380 A |
|
Average Current Draw (Music) |
600 A |
|
Power Wire Gauge (min. Recommended) |
2x 50mm² / 2x 0 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 10mm² / 2 x 6 AWG |
|
Weight (Lb) |
18 |
|
Height (in) |
2,4 |
|
Width (in) |
10,5 |
|
Depth (in) |
17,5 |
|
Banda Electra Bass 12K - 1Ω |
|
|
Total Power 14,4 @ 1 Ohm |
14200 WRMS |
|
Total Power 14,4 @ 2 Ohms |
10300 WRMS |
|
Total Power 12,6 @ 1 Ohm |
12600 WRMS |
|
Total Power 12,6 @ 2 Ohms |
9200 WRMS |
|
Efficiency @ 2 Ohms |
82% |
|
Efficiency @ 1 Ohm |
73% |
|
Input Voltage |
9 – 15V |
|
Input Impedance |
100K Ohms |
|
THD+Noise |
<1% |
|
Input Sensitivity |
180mV – 2,5V |
|
SNR |
85dB |
|
Frequency Response (Key OFF) |
- |
|
Frequency Response |
20Hz to 600Hz (-3dBs) |
|
Bass Bosst @ 45Hz |
Variable 0 to +18dBs |
|
HPF (Subsonic) |
20Hz to 80Hz @ 12dB/octave Linkwitz-Riley |
|
LPF (Crossover) |
80Hz to 600Hz @ 12dB/octave Linkwitz-Riley |
|
Recommended Fuse |
600 A |
|
Current at Rest |
4,0 A |
|
Average Current Draw (Sinusoidal) |
1380 A |
|
Average Current Draw (Music) |
600 A |
|
Power Wire Gauge (min. Recommended) |
2x 50mm² / 2x 0 AWG |
|
Speaker Wire Gauge (min. Recommended) |
2 x 10mm² / 2 x 6 AWG |
|
Weight (Lb) |
18 |
|
Height (in) |
2,4 |
|
Width (in) |
10,5 |
|
Depth (in) |
17,5 |
