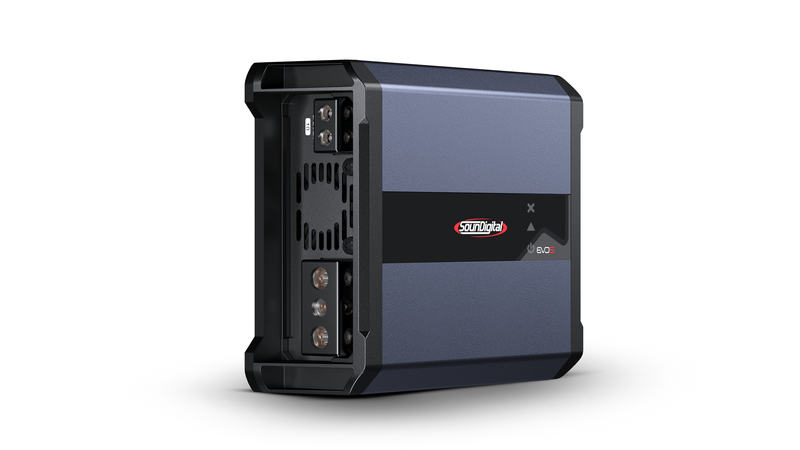

SD 1600.1 EVO 5 - 1Ω
Power @ 1Ω: 1 X 1600 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 4Ω: 1 X 697 WRMS -
SD 1600.1 EVO 5 - 2Ω
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 1600 WRMS
Power @ 4Ω: 1 X 1056 WRMS -
Response Frequency (-3dB): 5Hz ~ 25kHz
-
Subsonic Filter: 5Hz ~ 80Hz
-
Low Pass Filter: 50Hz ~ 1kHz
-
Bass Boost: 0dB ~ 12dB @ 50Hz
-
Supply Voltage: 9V ~ 16V
-
Signal-to-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB -
Input Sensitivity: 0.2V ~ 2V
-
Music Consumption:
1Ω: 75A
2Ω: 71A -
Consumption With Resistive Load:
1Ω: 149A
2Ω: 143A -
Total Efficiency:
1Ω: 85%
2Ω: 89% -
Damping Factor: >2000
-
Power cable: 16mm² (5 AWG)
-
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
-
Recommended Fuse (Musical): 80A
-
Recommended Battery (Minimum for Music Use): 80Ah
-
Width: 13.6cm
-
Length: 18 cm
-
Height: 5.48 cm
-
Weight: 1.13 kg
